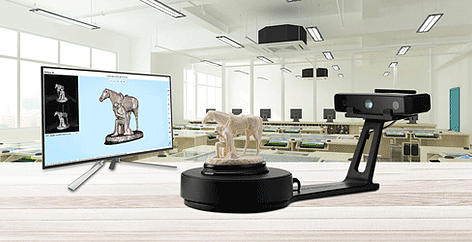

EinScan-SE (Elite) & EinScan-SP (Platinum), the Next Step in the Evolution of Desktop 3D Scanners

  • Multi-functional, Capture 3D Data Easier and Faster
  • Dual scan modes: Auto Scan and Fixed Scan
  • Wide scan range from small to large.


Shining 3D Introduces the EinScan SE (Elite) and EinScan-SP (Platinum), with unique different specifica-tions to meet most applications’ requirement.




EINSCAN – SE   EINSCAN – SP

  • A Powerful Companion for Desktop 3D Printing Applications
  • The Next Innovative Desktop 3D Scanner
  • Easiest 3D Scanning Experience for Non-technical Users

  • Ensures Designers Access to a Fast, Accurate & Reliable 3D Digital Experience
  • Faster Scanning & Higher Accuracy
  • EinScan-SP Provides a Higher Accuracy of 0.05mm for a Single Scan

  Easier Operation, Faster Scanning
User friendliness and Enhanced Efficiency

Time needed for a single scan: EinScan-SE 8 s, EinScan-SP 4 s;
Time needed for a 360-degree scan under auto-scan mode: EinScan-SE 2 mins, EinScan-SP 1 min.

Fine Details, Every Scan Generates a High-Quality 3D Data File

Structured light 3D scanning technology, great power of reconstruction the real geometry of the object with fine detail.

  Compatible for Communicating with 3D Printers

Auto meshing to watertight 3D data, providing high quality 3D data for 3D printer, which can be printedby 3D printer directly,
Provide API access service for any brand 3D printers.

Automatic Software

Automatic calibration with no rigid set-up required;
One-click scanning;
Auto alignment and fusion for direct mesh generation;

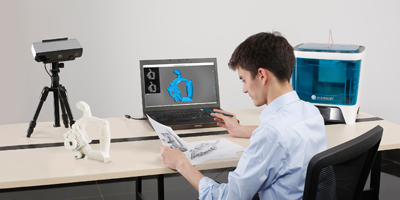

Multiple ways of alignment available in EinScan-SP: markers, turntable markers, feature and manual
alignments;
EinScan-SP provides a higher accuracy of 0.05mm for a single scan

  One Click Upload for Online File Saving and Data Sharing

Support third-party data sharing platform for access service; One Click Upload for Online File Archiving and Data Sharing.




Specification

Model EinScan-SE EinScan-SP

Scan Mode Fixed scan Auto Scan Fixed Scan Auto Scan
Mode of Alignment Feature; Manual Turntable; Manual Feature; Markers; Manual Turntable, Markers, Manual
              Turntable Coded Targets
Single Shot Accuracy   ≤0.1 mm     ≤0.05 mm
Minimum Scan Volume   30 × 30 × 30 mm     30 × 30 × 30 mm
Maximum Scan Volume 700×700×700 mm 200×200×200 mm 1200 ×1200×1200mm 200×200×200mm
Range of Single Capture   200×150 mm     200×150 mm
Scan Speed < 8 s   <2 mins   < 4 s   <1 min
Point Distance   0.17 mm – 0.2 mm     0.17 mm – 0.2 mm
Texture   Yes       Yes
File Format   OBJ, STL, ASC, PLY     OBJ, STL, ASC, PLY
Camera Resolution   1.3 Mega Pixels     1.3 Mega Pixels
Light Source   White Light     White Light
Stand-off Distance   290 ~ 480 mm     290 ~ 480 mm
    Nvidia series Graphic memory > 1G;   Nvidia series (GTX 660 or higher) Graphic memory > 2G;
Computer Requirements   1 ×USB 2.0 or 3.0   1 ×USB 2.0 or 3.0
    Win7, Win8, Win10 (64 bit), Dual-core i5 or higher,  >8 G   Win7, Win8, Win10 (64 bit), Dual-core i5 or higher,  >16 G
Weight (unpacked)   2.5 kg       4.2 kg
Weight (packed)   4.9 kg       7.0 kg
Dimension   570×210×210 mm     570×210×210 mm
Power Supply   50 w       50 w
Input Voltage   DC：12 v, 3.33 A     DC：12 v, 3.33 A
Calibration Board   Standard     HD
Turntable   Standard     Turntable with markers
Load Capacity of Turntable   5 kg       5 kg
