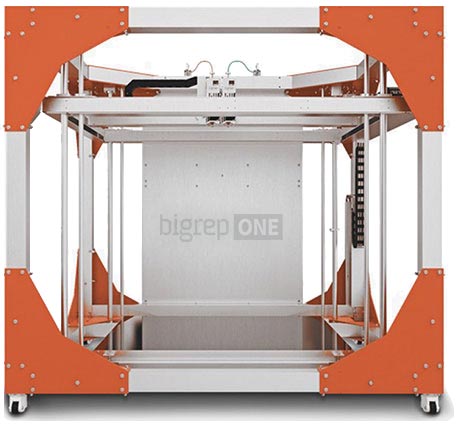

BigRep One V3™

  The BigRep ONE v3 was created to make 3D printing for large-scale objects as easy as possible. Every detail has received our full expertise and experience — for better quality, higher speed, and increased safety.

  The driving force behind the BigRep ONE hasn’t changed: make large-scale 3D printing affordable and available to more users. To achieve the best possible conditions for printing large objects a lot of new features are being introduced.



To achieve the best possible conditions for printing large objects, a lot of new features have been introduced. Despite its open format, all the moving parts are safely enclosed. The modular print head has been completely redesigned, providing an ideal setting for manufacturing large-scale objects in combination with a larger flexible spool holder. For large scale prints, our Performance Kit with 2mm nozzles allows for the highest throughputs, making the BigRep ONE v3 the fastest large-scale 3D printer in the world.



  With the new BigRep ONE we have made affordable, large-scale 3D printing even better — as acknowledged by the German Design Award 2016 we recently received.


  OPEN AND SAFE   INDEPENDENT   BIG, BIGGER, THE BIGGEST   SPACIOUS AND FLEXIBLE
  THE FRAME CONSTRUCTION    THE PRINT HEADS   THE BUILD VOLUME   THE SPOOL HOLDER

  The open format ensures that the user has the best possible view for monitoring the quality and progress of the object at all times. All moving parts have been enclosed for user safety and to reduce    The modular print heads operate independently, allowing for unbeatable flexibility when printing in two colors or with support material (PVA, HIPS). They can be easily adjusted and replaced without the need for tools. During the printing process, the active print head moves downward slightly to avoid making contact with the object. The print heads were developped by BigRep’s in-house teams and optimized for large-scale printing objects.   The new BigRep ONE features a build volume of X 1005mm * Y 1005mm * Z 1005mm. With a capacity of over one cubic meter, the new BigRep ONE v3 provides the largest FFF build volume currently available on the international market.   The spool holder was designed to fit all standard spool sizes. It can hold several spools up to 10kg. The enclosed case* protects the filament. A run-out detection system notifies the user when the spool is about to end. (*Only available as part of the Advanced Kit)

  EASY AND INTUITIVE
  THE USER INTERFACE

  The BigRep ONE v3 is equipped with an integrated control unit and touch panel. The in-house designed graphical user interface allows you to conduct all necessary work steps and operations easily and intuitively. Additionally, a VPN tunnel enables BigRep’s service team to perform service and maintenance.



  TECHNICAL SPECIFICATIONS


With BigRep ONE you have a perfect starting point for the factory of the future.



      Build volume (mm)   x 1005 y 1005 z 1005
      Layer resolution   400 – 900 microns / *150 – 400 microns
          *0.5 mm nozzle optional
      Extruder   Two modular extrusion heads with fan cooling
      Printing technology   FFF- Fused-Filament-Fabrication (FDM)
      Certified materials   BigRep PLA, BigRep PRO HT, BigRep PETG
Other filaments on request.

      Support material   BigRep PVA
      Heating strategy   60 C – 80 C
      Printer Weight   Approx. 460kg
      Size   x 1850 y 2250 z 1725 (mm)
      Power   208V-240V, 16A, 50/60Hz
      Safety Certifications   CE approved
      GUI   Onboard with touch panel PC
